Custom Pump Shaft Manufacturer & OEM Machining Services

Precision-machined pump shafts engineered for centrifugal, submersible, and heavy-duty industrial pumps. Built strictly to your CAD models, material standards, and strict concentricity tolerances.

OEM manufacturing partner for custom centrifugal pump shafts, slurry pump shafts, and vertical turbine shafts. We execute complex multi-axis CNC turning, deep-hole drilling for internal flush lines, precision cylindrical grinding, and dynamic balancing under one roof.

Spline Hydraulic Pump
The Spline Hydraulic Pump uses a splined shaft connection to create a firm link between the pump and its drive source. Unlike the unique shafts that only connect at one point, the spline design
Fuel Pump Shaft
Precision engineered for high performance fuel systems, the Fuel Pump Shaft serves as the critical link between mechanical energy and fuel delivery. Manufactured from hardened alloy steel with the
Submersible Pump Shaft
Engineered for reliable operation in fully submerged environments, the Submersible Pump Shaft functions as the core rotating element that transfers power from the motor to the impeller assembly.

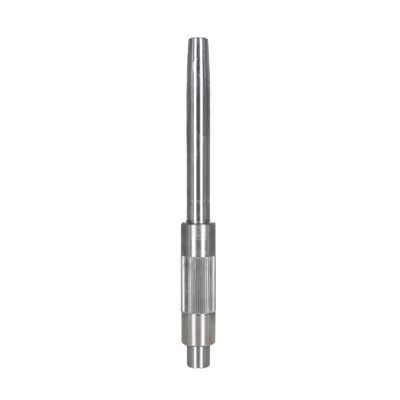

Agricultural Pump Shaft
Designed to withstand the demanding conditions of the farm irrigation and livestock water systems, the Agricultural Pump Shaft serves as the fundamental driveline component that transfers rotational
Deep Well Pump Shaft
Purpose-built for vertical turbine and line-shaft applications extending to depths exceeding several hundred feet, the Deep Well Pump Shaft serves as the critical load-bearing member that transmits
Oil Extraction Pump Shaft
Engineered for the demanding environments of upstream oil and gas operations, the Oil Extraction Pump Shaft functions as the critical power transmission component connecting surface drive systems to
Industrial Pump Shaft
Designed for the continuous-duty applications across the manufacturing, chemical processing, and the power generation facilities, the Industrial Pump Shaft serves as the fundamental rotating

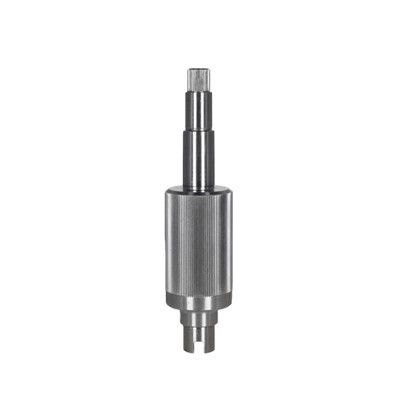

Chemical Pump Shaft
Specifically engineered for corrosive fluid transfer in chemical processing, pharmaceutical manufacturing, and petrochemical facilities, the Chemical Pump Shaft functions as the critical rotating

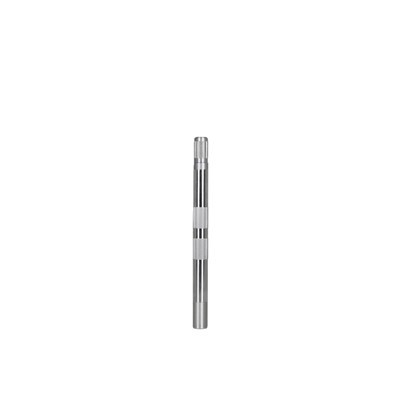

Micro Motor Shaft
Precision-crafted for miniature electric motors used in medical devices, robotics, and aerospace actuation systems, the Micro Motor Shaft serves as the ultra-precise rotational core that translates
Stainless Steel Pump Shaft
Designed for applications where corrosion resistance must be balanced with mechanical strength, the Stainless Steel Pump Shaft provides a versatile solution across food processing, marine, and light

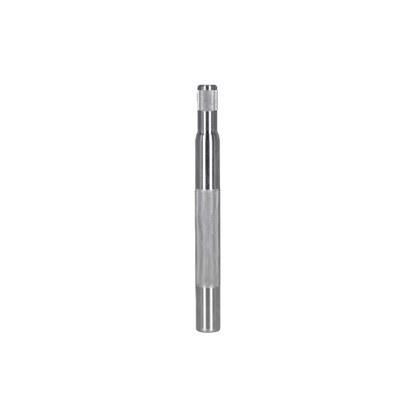

Axial Pump Shaft
Specially configured for axial flow pumping applications in flood control, irrigation, and large-scale water movement systems, the Axial Pump Shaft functions as the elongated torque-transmitting
Radial Pump Shaft
Configured for centrifugal and multistage pump designs where radial hydraulic forces dominate the loading profile, the Radial Pump Shaft serves as the primary rotating element that supports impeller

First 12 3 4 Last

Types / Product Range

Step Shafts for Centrifugal Pumps:

Multi-diameter configurations designed for secure bearing, impeller, and mechanical seal mounting.

Sleeved Pump Shafts:

Precision shafts featuring dedicated protective sleeves or hard-faced overlay zones to combat abrasive wear.

Long Vertical Turbine Shafts:

Deep-well and multi-stage pump shafts coupled via threaded connections or precision muff couplings.

Heavy-Duty Slurry Pump Shafts:

Large-diameter, high-stiffness shafts built to withstand severe radial loads and fluid turbulence.

Applications

Water & Wastewater Treatment:

Municipal water supply pumps, sewage lift stations, and desalination high-pressure booster pumps.

Chemical & Petrochemical:

Corrosive fluid transfer pumps, refinery process pumps, and chemical dosing systems.

Mining & Heavy Industry:

Slurry dewatering pumps, mine drainage systems, and mineral processing slurry lines.

Power Generation:

Boiler feed pumps, cooling water circulating pumps, and auxiliary fluid systems.

Materials & Manufacturing Options

Material Grades:
Stainless Steels: AISI 304, 316, 410, 420, 17-4PH (H1150/H1025)

Duplex & Super Duplex: UNS S31803 (2205), UNS S32750 (2507)

Nickel Alloys & High-Strength Steels: Monel K500, Inconel 625, AISI 4340, EN24 (817M40)

Surface Treatments & Hardening:

Induction hardening, plasma nitriding, thermal spray ceramic coating (Alumina/Titanium Oxide) on seal journals, and passivation for austenitic stainless steels.

Technical Specifications

Technical Parameter	Manufacturing Capability
Diameter Capacity	Outer diameter: φ15–φ350 mm
Length Capacity	Up to 3,000 mm
Dimensional Tolerance	Up to ±0.005 mm, depending on component geometry and machining requirements
Concentricity & Runout	Total Indicated Runout (TIR) controlled within 0.01 mm over the total shaft length
Surface Roughness	Ra 0.2–0.4 μm on mechanical seal and bearing journal surfaces

Key Design & Performance Considerations

Deflection Minimization:

Shaft stiffness calculated against hydraulic radial thrust to prevent excessive deflection that damages mechanical face seals.

Corrosion-Fatigue Resistance:

Selection of high PREN (Pitting Resistance Equivalent Number) alloys for chloride-rich or acidic pumping environments.

Stress Relief:

Inter-stage stress-relieving annealing implemented after rough machining to eliminate residual stresses and prevent in-service warping.

Manufacturing & Quality Control

Production Process:

Saw cutting -> Deep-hole drilling (if required) -> CNC rough turning -> Stress-relief annealing -> Semi-finish machining -> Hardening treatment -> CNC precision cylindrical grinding -> Keyway / Thread milling -> Final cleaning & protective wrapping.

Machining Equipment:

DMG Mori and Mazak multi-axis turning centers, Studer high-precision cylindrical grinders, and deep-hole gun-drilling machines.

Inspection & Testing

Dimensional Verification:

Hexagon CMM and laser micrometer systems calibrated to ISO/IEC 17025 standards.

Geometric Verification:

100% inspection of journal runout, cylindrical profile, and concentricity relative to datum centerlines.

Metallurgical & NDT Testing:

Positive Material Identification (PMI) spectrometer, ultrasonic internal flaw detection, and Magnetic Particle Inspection (MPI) for surface crack evaluation.

Why Choose Our Shaft Manufacturing

In-house execution of all critical turning, grinding, and heat treatment oversight without tier-3 outsourcing.

Strict compliance with international pump manufacturing standards and customer proprietary quality plans.

Direct material traceability with EN 10204 3.1 mill test certificates provided per production lot.

Bilingual engineering support providing DFM feedback and tolerance stack-up analysis prior to tool path programming.

OEM / Bulk Order Support

Customized consignment stock programs and scheduled blanket order releases tailored to active pump assembly schedules.

Export-grade packaging utilizing heavy-duty VCI anti-rust wrapping, foam-lined wooden crating, and individual heavy-walled PVC sleeves to prevent transit damage on ground surfaces.

Rapid prototyping turnaround for engineering validation and qualification testing phases.

Our Certification

FAQ

Q: What documentation is included with each pump shaft delivery?

A: Every shipment includes a Dimensional Inspection Report, CMM data sheet, EN 10204 3.1 Material Test Certificate, and NDT examination records where specified.

Q: How do you prevent shaft runout issues on long vertical pump shafts?

A: We utilize precision straightening presses following stress-relief heat treatment and finish grind the complete length on high-precision cylindrical grinders to maintain TIR within 0.01 mm.

Q: What file formats are required to initiate a quotation?

A: We require 2D manufacturing drawings in PDF or DXF format containing complete GD&T specifications, alongside 3D CAD models in STEP, IGES, or Parasolid format.

Q: Can you manufacture shafts from customer-supplied special alloy bars?

A: Yes. We regularly machine customer-supplied specialty raw materials, provided that mill test certificates and ultrasonic test reports are submitted prior to material release.

Q: How do you protect precision ground journals during international sea freight?

A: All finished shafts are coated with high-grade rust preventive oil, wrapped in VCI volatile corrosion inhibitor paper, sealed in heavy-duty plastic sleeves, and secured inside custom-built fumigated wooden crates.

Q: What is the standard production lead time for custom pump shafts?

A: Initial prototype samples typically require 15 to 25 days. Serial volume production orders are completed within 30 to 45 days depending on raw material availability and alloy grade.
