Ningbo Uni-drive Technology Co., Ltd. is one of the leading manufacturers and suppliers of splined shaft in China, featured by quality products and good price. If you're going to buy fancy splined shaft made in China, welcome to get pricelist from our factory. Customized orders are welcome.
Introduction

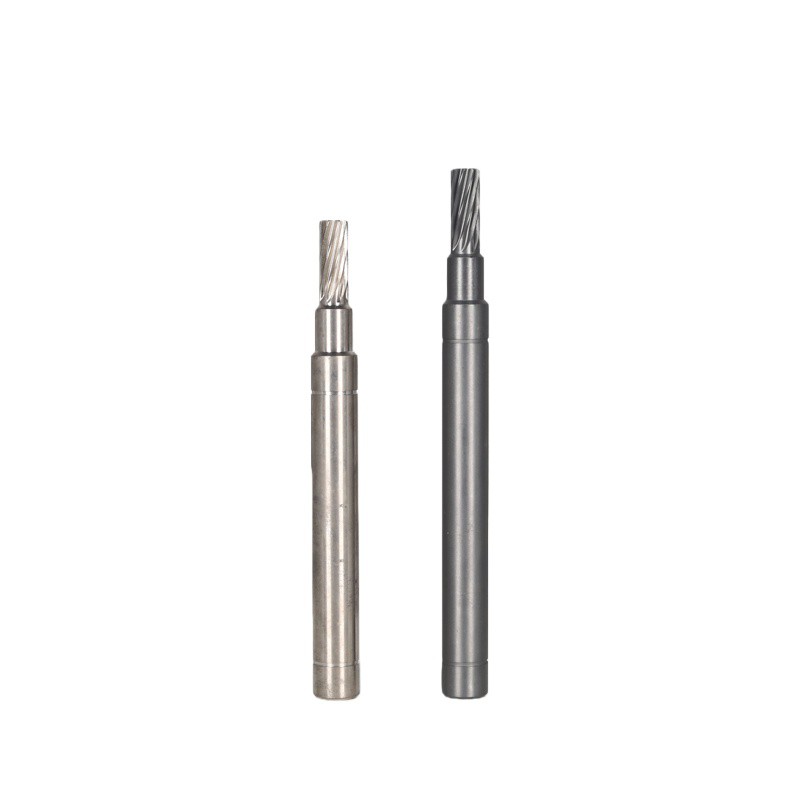

A keyed shaft works fine until it does not. The keyway broached, the key fitted, the set screw tightened-everything seems solid. Then the load cycles. The key starts to rock. The set screw works loose. What began as a tight connection becomes a source of backlash, vibration, and eventual failure. The Splined Shaft takes a different approach. Instead of concentrating all the torque transmission through a single key, it spreads the load across multiple teeth machined directly into the shaft. No separate key. No set screw but a shaft and hub designed to engage along their full circumference.
Features
| High-Precision Spline Design | Adopts precision machining technology for splines (including involute splines, rectangular splines, and triangular splines), with strict tolerance control, ensuring tight fit between the shaft and hub, precise motion transmission, and no relative slippage during operation. |
| Strong Torque-Bearing Capacity | The evenly distributed splines increase the contact area between the shaft and hub, enabling the shaft to bear larger torque and load compared to ordinary keyed shafts, reducing local stress concentration and avoiding component damage. |
| Wear & Fatigue Resistance | Made of high-grade alloy steel (such as 40Cr, 20CrMnTi) with carburizing, quenching, and other surface heat treatments, enhancing the hardness and wear resistance of splines, and improving fatigue life under long-term, high-frequency transmission. |
| Wide Compatibility & Versatility | Available in various spline specifications, sizes, and types, compatible with different hubs, reducers, and mechanical components, adapting to diverse power transmission needs in automotive, industrial, marine, and aerospace fields. |
Benefits
What do splines do that keys cannot? Distribute load, for starters. A single key carries all the torque through two small contact surfaces. Splines share the same torque across as many teeth as the diameter allows. Each tooth carries a fraction of the load, which means lower stress per contact point and longer life for both shaft and hub. Splines can be designed with controlled fit classes, from loose for easy assembly to tight for zero backlash. Then there is the question of axial movement. A keyed shaft locks the hub in place. Splines let the hub slide while transmitting torque-essential for shifting gears, engaging clutches, or accommodating thermal expansion. The Splined Shaft is engineered with tooth geometry, surface hardness, and fit tolerance matched to how the shaft will actually be used. Straight splines for sliding applications. Involute splines for high torque fixed connections. Crowned teeth to accommodate misalignment. Field experience shows that splined connections outlast keyed ones by significant margins in applications where torque is high, cycling is frequent, or axial movement is required. For designers who have seen keyways fail, the difference is clear.
Conclusion
The Splined Shaft solves a problem that keyed shafts cannot: how to transmit high torque reliably while accommodating sliding, cycling, and misalignment. Multiple teeth distribute load. Surface hardness prevents wear. For engineers who need connections that last, it offers something simple-a shaft that shares the load instead of concentrating it. One key is a compromise. Splines are a solution.
